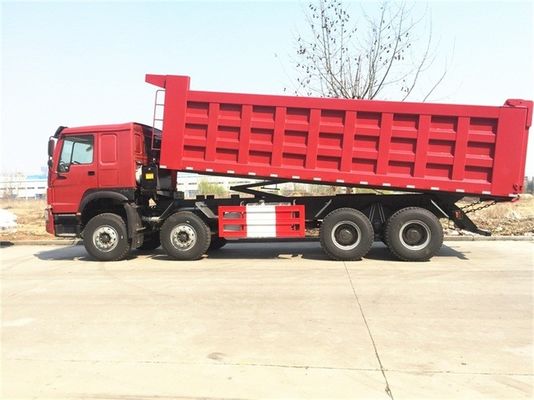

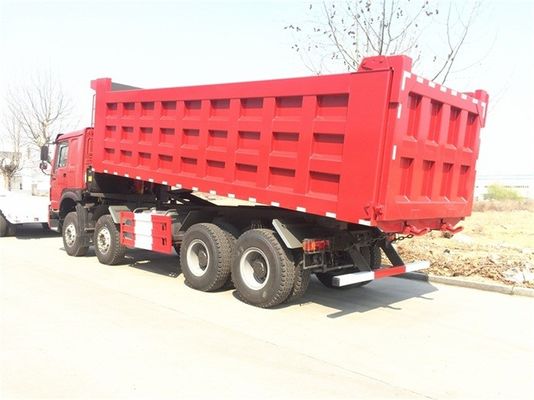

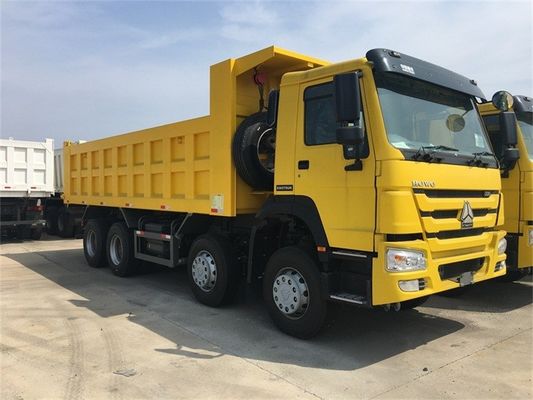

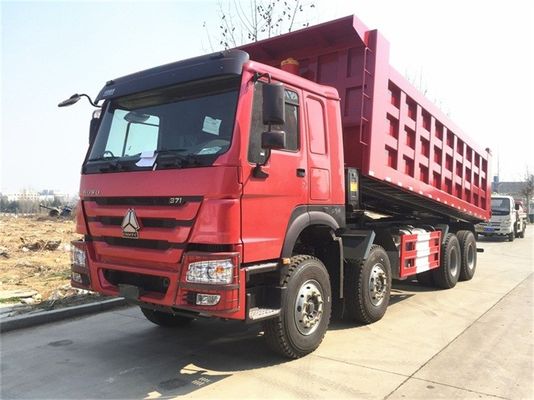

|Product Name::||Dump Truck (Tipper)||Model::||ZZ3317N4267|
|Drive Type::||8X4, LHD||Engine::||WD615.47, 371HP, Euro II|
|Cargo Body::||7800×2300×1500mm||Loading Capacity::||40-60tons|
371hp sinotruk dump truck,
12 Wheeler sinotruk dump truck,
SGS howo 8x4 dump truck
SINOTRUK (CNHTC) HOWO heavy duty trucks--the most advanced and most superior new generation of heavy duty trucks in China, with proprietary brand and intellectual property right, was developed by SINOTRUK (CNHTC) by applying the world advanced heavy duty truck key technology aiming at the market of the world.
HOWO heavy duty truck is with luxury and great appearance; it is a combination of fortitude and streamline, sturdiness and elegance. It aims at world heavy duty truck level on the ergonomic design like comfortability, safety and accessibility.
The launch of HOWO heavy duty truck embodied the enterprise operation philosophy of SINOTRUK (CNHTC) of pursuing the optimized customer value constantly. It will make the customer be proud of his correct option by its strong working ability, pleasurable interior and exterior trimmings, and better safety, comfortability, easy to operate, low fuel consumption and easy to maintain.
|Howo dump truck basic||Made||SINOTRUK|
|Howo dump Model||ZZ3317N3567|
|Howo dump Driving Type||8x4|
|Howo dump Engine||Howo dump Engine model||WD615.47|
|Howo dump Engine Type||6-cylinder in-line with water cooling, turbo-charging and intercooling,4-stroke direct injection diesel engine|
|Howo dump Maximum output||371 hp (247 Kw) at 2200 rpm|
|Howo dump Displacement||9.726 L|
|Compression ratio||29.8 hp/l|
|Specific fuel consumption||195 g/kWh|
|Howo dumpTransmission||Model||HW15710(Fuller technology)|
|Howo dump Axle||Front Axle||9T|
|Howo dump Fuel tank||Aluminium fuel tank||300 L capacity with locking fuel cap|
|Howo dump Steering||Model||ZF power steering, modol ZF8098, hydraulic steering|
|Howo dump Tyre||Radial Tyre||12.00R20|
|Howo dump Driver's Cab||Flat roof cab with bed||all steal forward control,2-arm windscreen wiper system with three speed,laminated windscreen, damped adjustable driver's seat, with heating and ventilating system, adjustable steering wheel,air conditioner|
|Howo dump Dimensions mm||Wheel base||3600+1350|
|Dimension of the rear dump body||7300*2300*1500|
|Howo dump Performance||Maximum driving speed (km/h)||75|
|Maximum gradeability (%)||40|
|Minimum ground clearance (mm)||314|
|Minimum turning circle (m)||20|
|Fuel consumption (l/100 km)||28|
1, mining industry, like copper mine, iron mine, nickel mine, coal mine, etc.
2, construction sites, transport the sand, small stone, etc.
3, farm, to transport cereals
SINOTRUK (CNHTC) HOWO series 6x4 dump trucks (tipper trucks) are designed by SINOTRUK comprehensive with the world’s most advanced automotive technology and mature, reliable assembly parts.
1, Engine: HOWO series dump truck equipped with the SINOTRUK mature WD615 Euro II turbocharged water-cooled diesel engine, horse power covering 266-420Ps, fuel consumption lower.
2, Cab: Cab passive-safety performance reaches the world advanced level, the cab installation uses a four-point suspension to make the drivers more high driving comfort;
3, Clutch: Diaphragm spring clutch, diameter 430mm;
4, Brake: WABCO brake system and VOSS connectors, more safe and reliable;
5, Steering: ZF steering system, hydraulic power assistance;
6, VDO electrical instrumentation to improve the reliability of the electrical system
7, Maximum loading capacity can be 40-50tons.
By Roro or Bulk or Flat Rack Container according to your specific requests.
1, the whole truck warrenty is 1 year or 50000km, base on whichever comes first.
2, professional sevice team, enough spare parts to make you away from future worries.
3, professional trainning teachers for your drivers or engineers on repair and maintenance
