Product Details:
|
Use: | Truck Trailer | Type: | Semi-Trailer |
---|---|---|---|
Material: | Steel | Certification: | CE/ADR/DOT |
Size: | 12400mm*2500*1560mm | Max Payload: | 80 Tons |
Axle Brand: | Fuwa/BPW | Axle Loading: | 13,16,20,22 Tons |
Suspension: | Mechanical/Air Suspension | Tire: | 11.00r20 Or 12r22.5 |

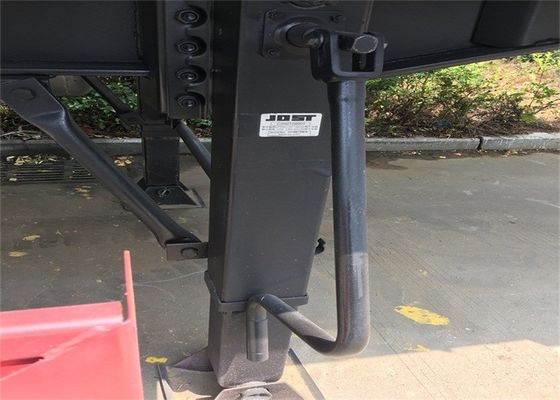

King Pin: | 2"(50mm)or3.5"(90mm) JOST | Landing Gear: | JOST Brand Two-speed |
Leaf Spring: | 90(W)mm*13(Thickness)mm*10(Layer) | Vehicle Paingting: | Electrophoresis Paint |
High Light: | BPW Axle flat deck trailers,40ft Container Semi Trailer,IFA flat deck trailers |
3 Axle 40ft Container Semi Trailer Chassis Flat Bed Flatbed Trailer For Sale
Shipping Container Trailer 3 Axles 40 Footer Flat Deck Trailers For Transporting Container
Flatbed Trailer Product Description |
Specification | |
1. Dimension | 12550 x 2480 x 1550 mm |
2. Tare weight | 6400 kg (Two Axles); 7100 kg (Three Axles) |
3. Payload | 40 tons (Two Axles); 50 tons (Three Axles) |
4. Function | Load 1x40' or 2x20' or 1x20' container |
Standard Configuration | |
1. Axle | 13 ton Fuwa brand, 150x150, 2/3 units |
2. Suspension | Mechanical suspension |
3. King pin | 2", bolt on type |
4. Landing gear | 28 ton, two speeds |
5. Tire | 11R22.5, 8/12 units |
6. Rim | 8.25-22.5, 8/12 units |
7. Braking system |
Gladhand valve, Wabco relay valve, 30/30 double brake chambers on rear axle, 30 single chambers on other axles |
8. Electrical system | Dual circuit, 7-way split pin receptacle plug, LED light |
9. ABS | None |
10. Painting |
Blasting sand before painting, one coat primer and two coat finish painting, colour supplied by customer |
11. Mudguard | Plastic or steel |
12. Others | 1 tool box, 1 wheel carrier, excluding spare wheel |
Optional Configurations | |
1. Air suspension | Firestone, Goodyear or Chinese brand |
2. Lift axle system | |
3. ABS system | Wabco or Chinese brand |
4. Axle | BPW 12 ton |
5. Add front wall or side wall |
SINOTRUK SHIPPING CONTAINER TRAILER
Q1. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.
Q2 How about your product quality?
A: The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certificatio
the quality is 100% guaranteed
Q3. How about your company's service, especially after-sale service?
A: We have been in this field for many years, our company is constantly improving the service quality to provide excellent service for customers according to the "client first" principle.
Q4: Is there any advantages of your price?
A: We are one of the important suppliers of SINOTRUK, which provides guarantees for reasonable price and good quality. Especially, we provide a new service pattern-online assembly service, which aims to produce cars according to customers' specific requirements.
