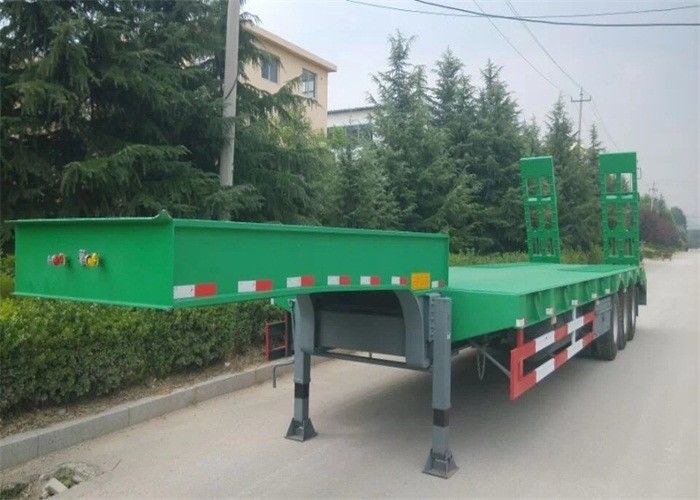

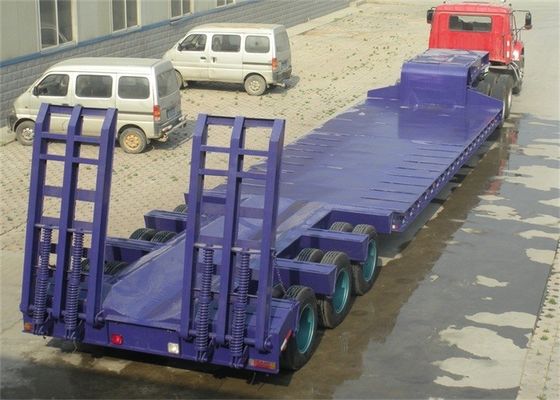

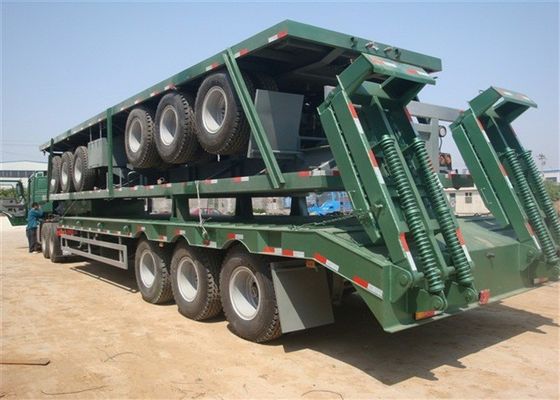

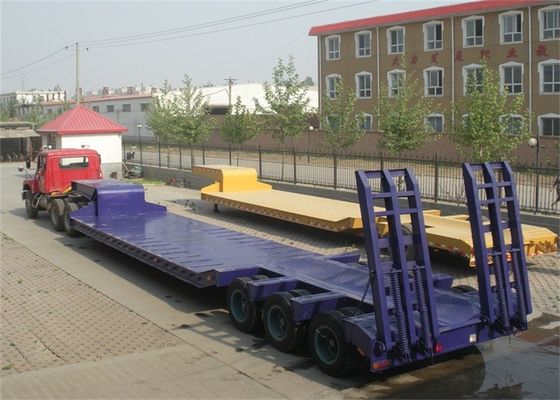

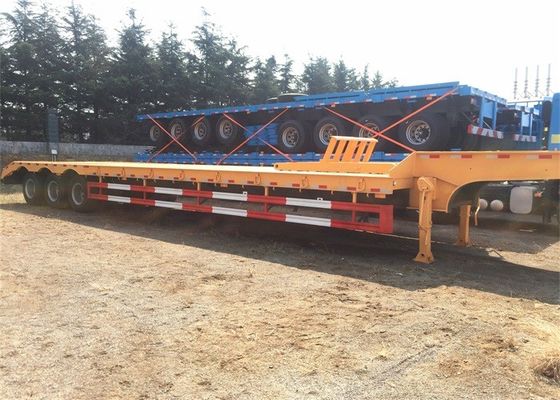

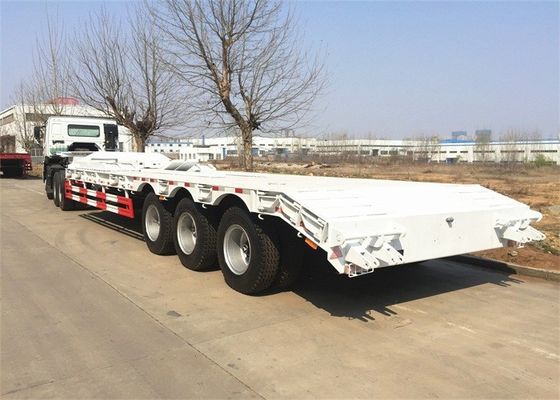

3 Axles 60 Ton Swan Neck Low Bed Semi Trailer

3 Axles 60 Ton Swan Neck Low Bed Semi Trailer
3 Axles 60 Ton Swan Neck Low Bed Semi Trailer 3 Axles 60 Ton Swan Neck Low Bed Semi Trailer 3 Axles 60 Ton Swan Neck Low Bed Semi Trailer 3 Axles 60 Ton Swan Neck Low Bed Semi Trailer 3 Axles 60 Ton Swan Neck Low Bed Semi Trailer 3 Axles 60 Ton Swan Neck Low Bed Semi Trailer

Large Image :  3 Axles 60 Ton Swan Neck Low Bed Semi Trailer

Product Details:
Place of Origin: China
Brand Name: sinotruk
Certification: SGS/ISO/VGA
Model Number: 9401TD
Payment & Shipping Terms:
Minimum Order Quantity: 1unit
Price: US$10000-$15000
Packaging Details: Nude/Waxed
Delivery Time: 10-15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 units/month

3 Axles 60 Ton Swan Neck Low Bed Semi Trailer

Description
Type: Low Flat Semi Trailer Axle: 3-4pcs
Loading: 80 Tons Tyre: 12.00R22.5
Size: 12.5*2.4*1.5 Suspension: Mechanical Or Air
Landing Gear: JOST Brake System: WABCO
King Pin: 2.0 Or 3.5 Inch Color: Customers Optional
High Light:

3 Axles Low Bed Semi Trailer

,

60 Ton semi low bed trailer

,

Swan Neck Low Bed Semi Trailer







3 Axles 60Ton Swan Neck Lowbed Low Bed Semi Trailer Truck for sale







  SINOTRUK TRAILERS



3 Axles 60 Ton Swan Neck Low Bed Semi Trailer 0





















3 Axles 60 Ton Swan Neck Low Bed Semi Trailer 13 Axles 60 Ton Swan Neck Low Bed Semi Trailer 23 Axles 60 Ton Swan Neck Low Bed Semi Trailer 33 Axles 60 Ton Swan Neck Low Bed Semi Trailer 43 Axles 60 Ton Swan Neck Low Bed Semi Trailer 5

3 Axles 60 Ton Swan Neck Low Bed Semi Trailer 6

Specifications for  lowboy trailer
Dimension
11000mm-16000mm x 3000-3500mm x 1650 mm (Standard or Customized )
Loading Capatity
60-120 Tons
Axle
13T/16T, BPW/FUWA/Chinese brand
Rim
6.5-20 / 7.5-20 / 8.00-20 / 8.5-20
Tire
8.25R20 / 10.00R20 /11.00R20 / 12.00R20
Suspension
Tri-axle Mechanical suspension or Air Suspension (Chinese brand or BPW brand)
King Pin
JOST brand 2.0 or 3.5 inch (bolted or welded type)
Landing Gear
JOST brand or Chinese brand 28 Tons
Main Beam
Height:450mm-580mm Q354B steel
Side Beam
16mm-30mm "I" Steel
Ladder
Manually operated or Hydraulic type

Surface Coating
Sandblasted, anti-rust chassis surface is avaible with 1 layer of anticorrosive primer and 2 layers of top coats.
Rmark
The specification just for your reference, we can bulid trailer as your specific requirements





Advantage

1. Low bed semi trailer series have flat, concave beam and tire exposed structure, straight or goose neck. Its frame is a ladder type, the longitudinal beam section is I-shaped,It has characteristics of high stiffness and high strength.

2. The low principal plane of vehicle frame and platform ensures the smoothness of transportation and is suitable for carrying various construction machinery, large equipment and steel etc.

3. Adopt three axle balance type, double axle balance type or rigid suspension, and install mass balance piece between the front and rear leaf spring, which can make the deflection of the front and rear leaf spring change by the same amount, and make the front and rear axle force balance.



3 Axles 60 Ton Swan Neck Low Bed Semi Trailer 7

3 Axles 60 Ton Swan Neck Low Bed Semi Trailer 83 Axles 60 Ton Swan Neck Low Bed Semi Trailer 93 Axles 60 Ton Swan Neck Low Bed Semi Trailer 103 Axles 60 Ton Swan Neck Low Bed Semi Trailer 113 Axles 60 Ton Swan Neck Low Bed Semi Trailer 123 Axles 60 Ton Swan Neck Low Bed Semi Trailer 133 Axles 60 Ton Swan Neck Low Bed Semi Trailer 14

♦ This series lowbed semi trailers are mainly used in heavy duty transportation for construction or logistic companies, such as excavator, digger, mover, crane,

♦ The axles can be Fuwa / Bpw with different tonnages by your need with price differences.

♦ The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, etc

♦ The loading deck can be concave beams, tire appeared cover, totally flatbed, or extendable

♦ The loading ramps can be rear end designed
, or front loading ladders, which can be mechanic spring ladders and hydraulic loading ramps by different needs.



3 Axles 60 Ton Swan Neck Low Bed Semi Trailer 153 Axles 60 Ton Swan Neck Low Bed Semi Trailer 16





3 Axles 60 Ton Swan Neck Low Bed Semi Trailer 17

3 Axles 60 Ton Swan Neck Low Bed Semi Trailer 18





1.Does your company is a factory or trade company?

We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.



2.Whats the qualify assurance we provided and how do we control quality?

1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.



2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.



3. What’s your MOQ?

One unit trailer or truck.



4. How do you transport the semi trailers and trucks?

We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.

bulk or container.



5. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
