Product Details:
|
Brand: | SHACMAN M3000 | Drive Type: | 6x4, LHD |
---|---|---|---|
Model: | Dump Truck Tipper Truck | Engine: | Weichai Brand |
Emission Level: | Euro II, III, IV, V | Transmission: | FAST F9, F10, F12 Series |
Front Axle: | 7.5 Ton MAN (drum) | Rear Axle: | 16 Ton MAN Double Stage Casting |
High Light: | 30 Ton SHACMAN Trucks,50 Ton SHACMAN Trucks,50 Ton Tipper Truck |

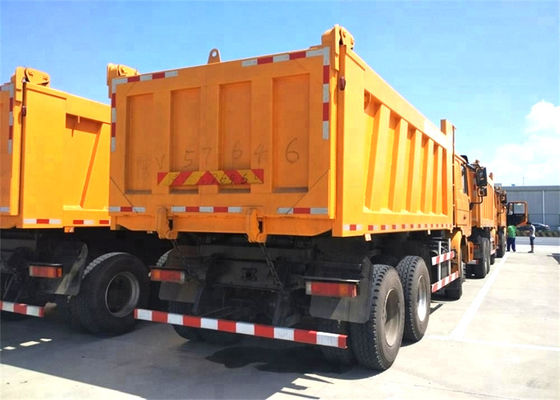

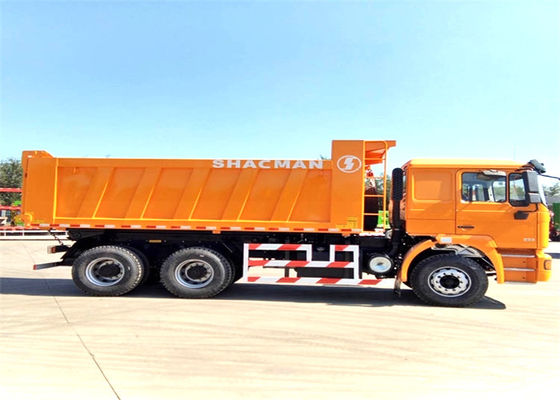

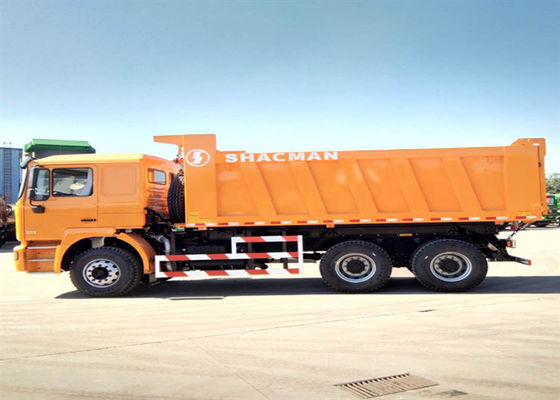

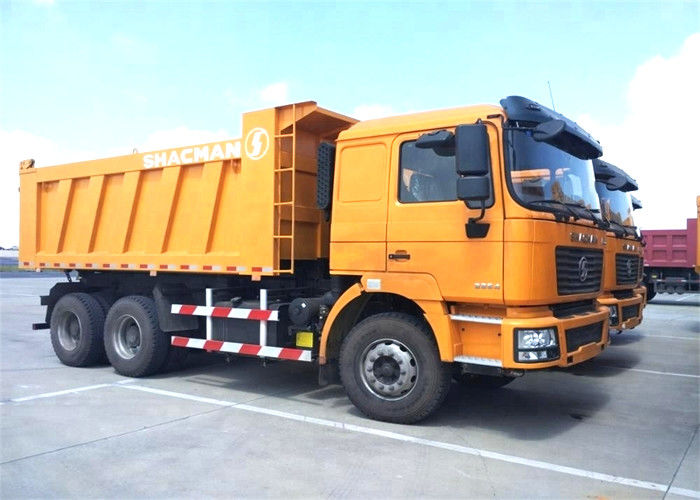

SHACMAN Truck 30-50 Ton Heavy Dump Trucks Shacman 6x4 Tipper Truck
|
|
![]() |
A Truck You Can Depend On
simulation software increasing cooling capacity by 10% |
Comfortable and Safe
■ European ECE-R29 collision test certified |
![]() |
ITEM | UNIT | DESCRIPTION |
Vehicle | Shacman dump truck | |
Overall dimension | mm | 8400×2490×3600 |
Dump box dimension | 5600×2300×1400 | |
Curb weight | kg | Appro×15030 |
Loading weight | Appro×35000 | |
Wheel base | mm | 3800+1400 |
Front/Rear overhang | 1500/1895 | |
Approach/departure angle | ° | 28/30 |
Max speed | km/h | 75 |
Standard configuration |
1. Hydraulic lifting dumper box,front lifting. 2. Thickness of dump box : bottom 8mm, side 6mm. 3. Rear open dump box. |
|
Chassis Parameter | ||
Cabin | Flat top cabin, a sleeper, air conditioner,3 passengers | |
Drive form | 6×4 | |
Front axle | HF7.5,drum brake | |
Rear axle | HC16 ,Radio 5.262 | |
Engine |
Brand : WEICHAI POWER Model : WP10.310E32, 310hp Fuel type : diesel. Displacement : 9726ml Emission standard : Euro 2 |
|
Transmission | 10JSD140, 10F, 2R, manual operated | |
Tire model | 12.00R20 | |
No.of tire | 10pcs |
