Product Details:
|
Manufacturer: | SINOTRUK (CNHTC) | Series:: | HOWO |
---|---|---|---|
Product Name:: | Tractor Truck, Semi Trailer Towing Truck | Model:: | ZZ4257N3241 |
Drive Type:: | 6X4, LHD | Engine:: | 336 371 420HP, Euro II |
Loading Capacity:: | 40-60tons | Cabin:: | HW76 HW79 |
Transmission:: | HW19710 HW19712 | Fifth Wheel: | 2.0''/3.5'' |
High Light: | 420 HP Trailer Tractor Truck,6x4 Wheel Trailer Tractor Truck,Euro II Engine semi flatbed trailer |
Heavy Duty 6*4 Wheel 420 HP New Sino 6x4 Prime Mover Right Hand Drive Sinotruk Howo Trailer Tractor Truck Head Trucks Fo

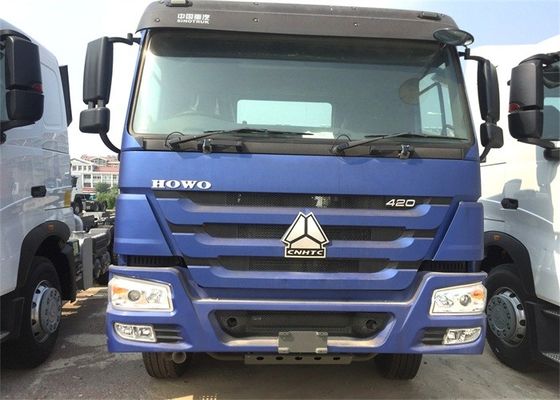

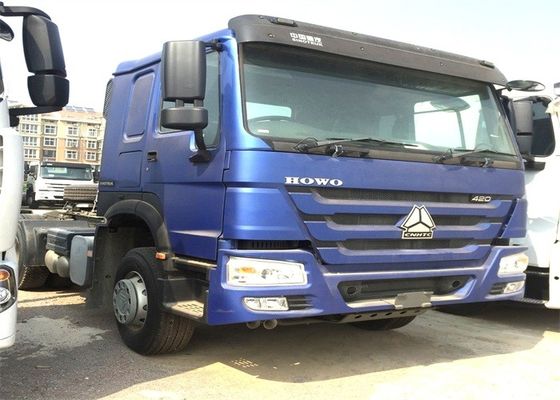

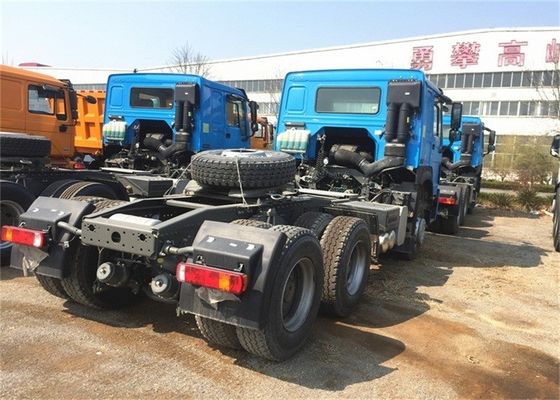

SINOTRUK (CNHTC) HOWO 6x4 Tractor Truck, semi trailer towing truck, container towing truck
SPECIFICATION | ||||
Dimension(Lx W xH)(unloaded)(mm) | 6800×2496×3125 | |||
Approaching angle/Departure angle(°) | 16/70 | |||
Overhang(front/rear) (mm) | 1500/725 | |||
Wheel base (mm) | 3225+1350 | |||
Max speed(km/h) | 101 | |||
Cub weight(kg) | 8800 | |||
Engine(Steyr technology, made in China) | Model | WD615.69,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection | ||
Fuel type | Diesel | |||
Power, max(kw/rpm) | 371HP | |||
Emission | EUROII | |||
Fuel tanker capacity(L) | 400L aluminum oil tank | |||
Transmission | Model | HW19710, 10 speeds forward and 2 reverse | ||
Brake system | Service brake | Dual circuit compressed air brake | ||
Parking brake | spring energy, compressed air operating on rear wheels | |||
Steering system | Model | ZF8118 | ||
Front axle | HF9 | |||
Rear axle | HC16 | |||
Tire | 12.00R20 | |||
Electrical system | Battery | 2X12V/165Ah | ||
Alternator | 28V-1500kw | |||
Starter | 7.5Kw/24V | |||

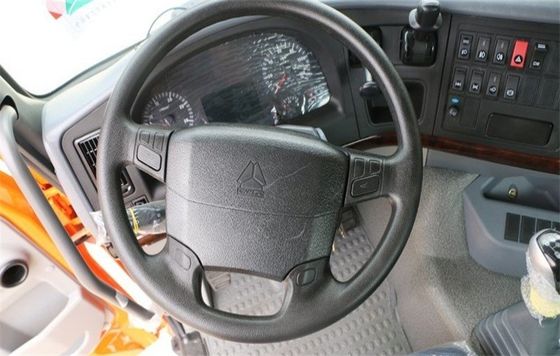

Cab | HOWO 76 New face cab(one bed,with air conditioner), all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. |
SINOTRUK (CNHTC) HOWO heavy duty trucks--the most advanced and most superior new generation of heavy duty trucks in China, with proprietary brand and intellectual property right, was developed by SINOTRUK (CNHTC) by applying the world advanced heavy duty truck key technology aiming at the market of the world.
HOWO heavy duty truck is with luxury and great appearance; it is a combination of fortitude and streamline, sturdiness and elegance. It aims at world heavy duty truck level on the ergonomic design like comfortability, safety and accessibility.
By Roro or Bulk or Flat Rack Container according to your specific requests.
