Product Details:
|
| Use: | Truck Trailer | Type: | Semi-Trailer |
|---|---|---|---|
| Material: | Steel | Certification: | CE/ADR/DOT |
| Size: | 12400mm*2500*1560mm | Max Payload: | 80 Tons |
| Axle Brand: | Fuwa/BPW | Axle Loading: | 13,16,20,22 Tons |
| Suspension: | Mechanical/Air Suspension | Tire: | 11.00r20 Or 12r22.5 |
| King Pin: | 2"(50mm)or3.5"(90mm) JOST | Landing Gear: | JOST Brand Two-speed |
| Leaf Spring: | 90(W)mm*13(Thickness)mm*10(Layer) | Vehicle Paingting: | Electrophoresis Paint |
| High Light: | 20ft Shipping Container Trailer,40ft Shipping Container Trailer,40ft Container Semi Trailer |
||

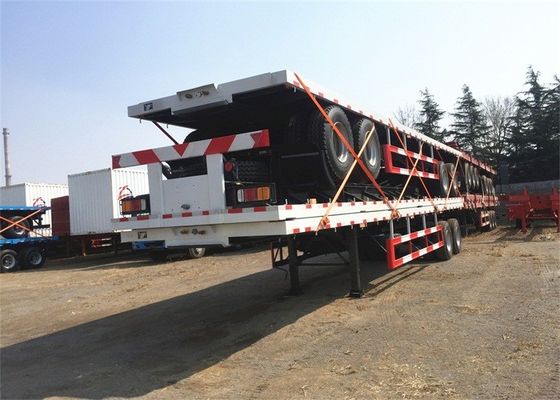

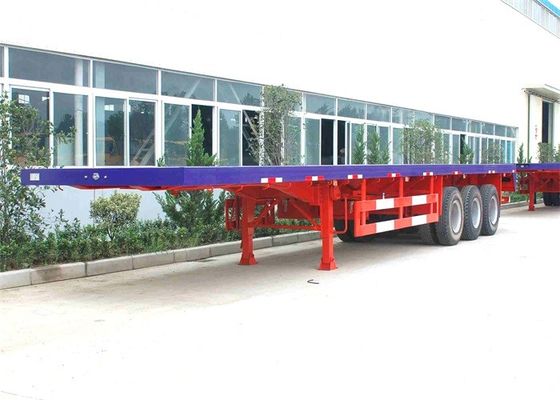

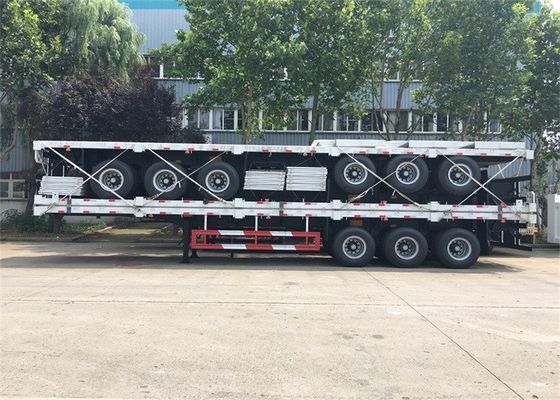

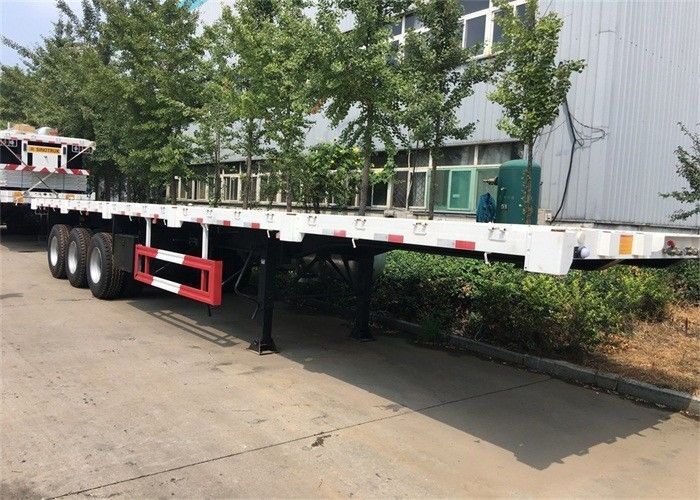

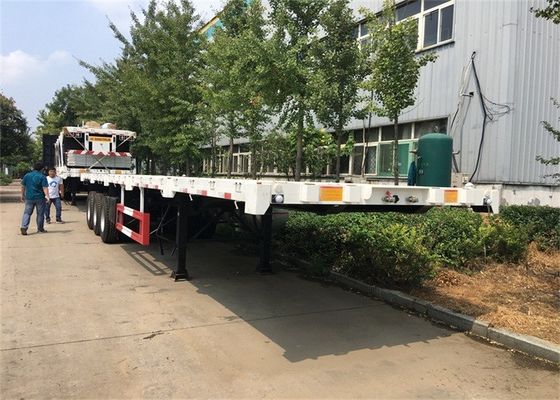

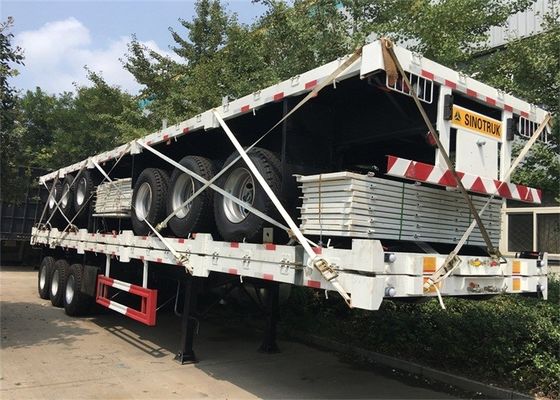

Shipping Container Trailer 40ft Or 20ft Trailer Container Flatbed Semi Trailer
SINOTRUK SHIPPING CONTAINER TRAILER
| Model | DX9945827VP |
| Tare Weight | About 6.1T |
| Dimension | 12450mm*2490mm*1575mm (according to customer requirements |
| Loading Capacity (T) | ≤ 50 T |
| Axle | 13 T FUWA brand |
| Tire | 12.00R22.5 |
| Suspension | Air suspension (American Type ) |
| King pin | 2.0 or 3.5inch bolts type or Welding type |
| Support leg | 28Tons (Double speed) |
| Main beam |
Height: 500mm, upper plate is 12mm, middle plate is 6mm, Down plate is 12mm; Material is Q345B Steel. |
| Side beam | 3mm channel steel (Formed by suppress.Material is Q235steel). |
| Bottom platform | 3mm diamond steel plate |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; one piece of 45L air tanks |
| ABS | WABCO brand |
| Twist Locks |
Twelve pieces ( Twist Screw Type) (especial for exporting market ) |
| Valve | WABCO valve (especial for exporting market ) |
| Light | LED light (especial for exporting market ) |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Retractable Axle | 1 or 2 Optional |
| Spare tyre carrier | 1 |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive primer, 2 coats of final paint |
| Shipping Terms: | By 40HQ container. |
1. How do you transport the semi trailers
We will transport the trailers by bulk or container,we have possess long-term cooperation with ship agency who can provide you lowest shipping fee.
2.Can I have samples of this type of trailer to test the quality?
Yes, you can buy any samples to test the quality,our MOQ is 1 set.
3. What's the delivery time and can you lower the price?
It depends on your order. The delivery time is 15 workdays after we received your prepayment. If you have place an order of large quantities, then ,of course, the price can be lowered.
4. Can I customize the painting and the logo?
Yes, we offer customized logo for any type.
