Product Details:
|
| Driving Type: | 6x4, LHD | Engine: | Weichai |
|---|---|---|---|
| Transmission: | FAST, Fuller, 12JS200TA | Emission: | Euro II, III, IV, V |
| Tire: | 12.00R20 | Middle And Rear Axle: | Mercedes Benz Technology |
| Fifth Wheel: | JOST | Steering: | ZF |
| High Light: | NG80B North Benz Truck,10 Wheeler North Benz Truck,10 Wheeler Beiben Truck |
||

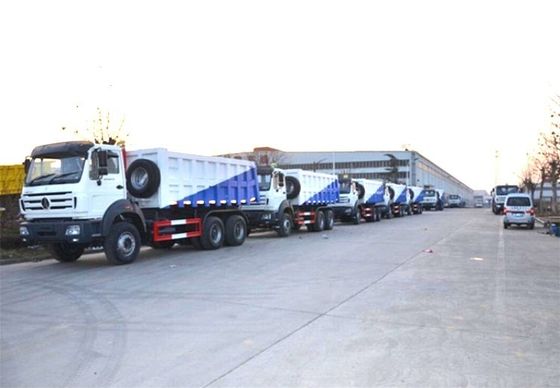

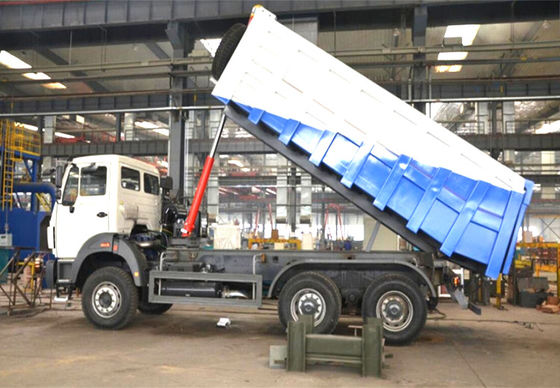

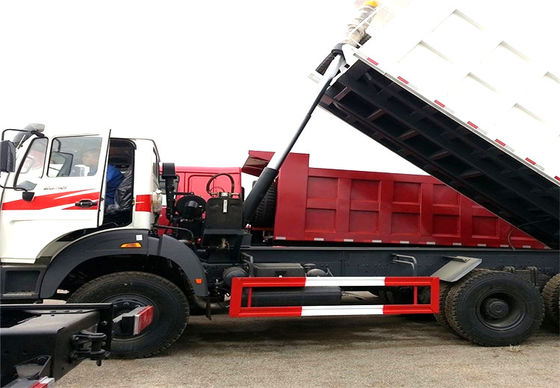

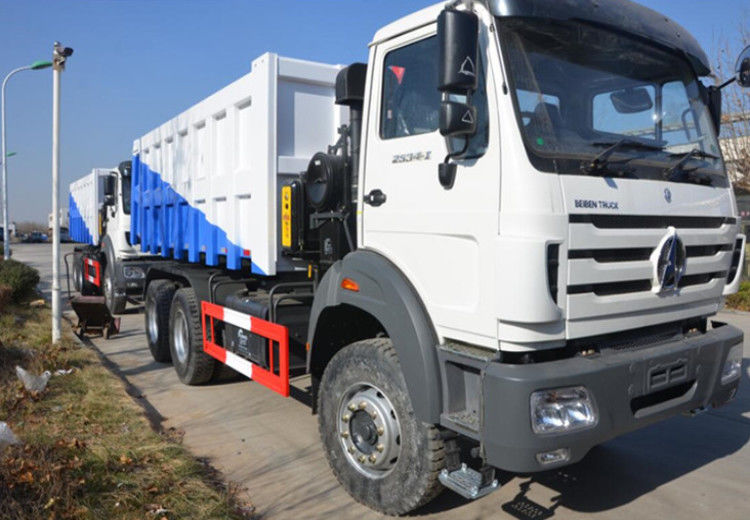

North Benz Truck Beiben 6x4 NG80B Tipper Truck 10 Wheeler Super Dump Trucks
By virtue of complete technology and equipment introduction from German Daimler Benz, after fully optimization and promotion, the North Benz trucks are characterized by high reliability, high safety, large loading capacity and high cost performance.
The series products of our trucks are ideal versions instead of imported ones. With outstanding performance and high quality, they are widely used in industries and sectors, such as national defense, aviation, postal service, railways, highways, harbors, petroleum, chemicals, water and electricity, forests, fire fighting, banks and peace keeping forces. Now our trucks are sold to the worldwide countries and areas, such as Kenya, Ethiopia, Libya, Turkmenistan, Kazakhstan, South Africa, Syria, and so forth.
All series products of Bei Ben Trucks are well received by customers both at home and abroad. We welcome more friends to cooperate with us.
| Model | 6x4 dump truck | |
| Cabin | Full steel skeleton structure, covered with double layer steel plate; Can be tipped forwardly; With inner A/C | |
| Engine | Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling. | |
| Model: | WP10. 380E32 | WEICHAI Diesel engine |
| MAX Horse power: | 380HP/280KW | |
| Displacement(L): | 9.726liter (Euro 2 standard) | |
| Max torque: | 1500NM@1200-1600rpm | |
| Bore/stoke: | 126mm/130mm | |
| Gear box | Max torque:2000NM | |
| Model: | 12JS200T, mechanism,12gears,2reverse gear, manual, synchronization | |
| Speed: | 12speed,2reverse | |
| Axle(front/rear) | ||
| Front axle | Double-shoe pneumatic brake, non-driving steering axle | |
| Tandem | Double-shoe pneumatic brake, casting, double reduction driving axle | |
| Clutch | Single dry frictional disc,Hydraulic boosting | |
| Brake | Service brake: Brake gap can be adjusted automatically, double circulation air brake system | |
| Parking brake: Potential springs pressing on middle and rear wheels | ||
| Engine brake: Engine exhaust brake(EVB) | ||
| Steering |
TAS85, driver sit at the left hand side
|
|
| Electric Equipment | ||
| Operating voltage: | 24Vnegative grounded | |
| Starter: | 24V,5.4KW | |
| Alternator | 28V,758W | |
| Battery voltage | 12V/135Ah,cigar lighter | |
| Frame | Fish belly, shape, variable width, variable sections, side beam structure. | |
| Tyre | 12+1 spare tyre with rim | |
| 12.00-R20 | ||
| Suspension system: strongthen heavy duty Leaf spring type | ||
| Front/Rear | 12/12/13 | |
| Dump body: | ||
| Inside size of Body(mm): 8900x2300x1000,6x8mm, made of high intensity steel | ||
| Lifting type: Front lifter “T” type hydraulic system. | ||
| Overall dimension(mm): 11730x2500x3484(Length x width x height) | ||
| Wheelbase | 1950+4600+1450mm | |
| Track: | ||
| Front/Rear | 2045/1872 | |
| Approach/Departure angle | 26/27 | |
| Front /Rear overhang | 1410/2320 | |
| Max speed | 90km/h | |
| Kerb weight: | 15500kg | |
| Oil tank capacity | 300L fuel tank | |
1. We can provide various trailers such as heavy duty low bed semi trailer, flatbed container semi trailers, skeletal container semi trailer, side wall semi trailer,cargo box semi trailer, dump trailers, bulk cement tanker trailer, fuel tanker semi trailer,stainless steel tank trailer, aluminum tank trailer, car carrier semi trailer, and can be manufactured as special design
2. As the first class the agent of SINOTRUCK and SHACMAN, we can export the SINOTRUCK and SHACMAN brand tractor head, dump truck,
fuel tanker truck, water tanker truck, cargo truck , concrete mixture truck etc with great price and service advantages.
3. Except trucks and trailers, our company can also provide trailer parts and engineering machinery such as crane and excavator etc.
CCC(China Compulsory Certification)
WMI ( WORLD MANUFACTURE)
BV (Bureau Veritas)
ISO9001
Our company has enjoyed great preference by customers from Africa, South America, middle east, North Asia, South Asia and South east Asia
So far we have export to Philippines, Malaysia, Indonesia, Bangladesh, Myanmar, Vietnam, Angola, Tanzania, Congo, Nigeria, Mozambique, Fiji,
Uganda, Ethiopia, Somalia, Iraq, Djibouti, Namibia, Zimbabwe, Liberia, Chile, Peru,Uruguay, Argentina etc.
1. When you plan to visit our factory, we suggest book the ticket to Beijing International Airport, then only need take 1.5 hours high speed train to our office in Jinan., we can pick you up at the train station to our factory.
2. if you arrive in Shanghai or Guangzhou, you can fly to Jinan within 2.5 hours will arrive Jinan Airport, we can arrange to pick you up at the airport.
