Product Details:
|
Type: | Low Flat Semi Trailer | Axle: | 3-4pcs |
---|---|---|---|
Loading: | 80 Tons | Tyre: | 12.00R22.5 |
Size: | 12.5*2.4*1.5 | Suspension: | Mechanical Or Air |
Landing Gear: | JOST | Brake System: | WABCO |
King Pin: | 2.0 Or 3.5 Inch | Color: | Customers Optional |
High Light: | Extendable Lowboy Semi Trailer,3 Axle Lowboy Semi Trailer,SGS Gooseneck low deck trailer |

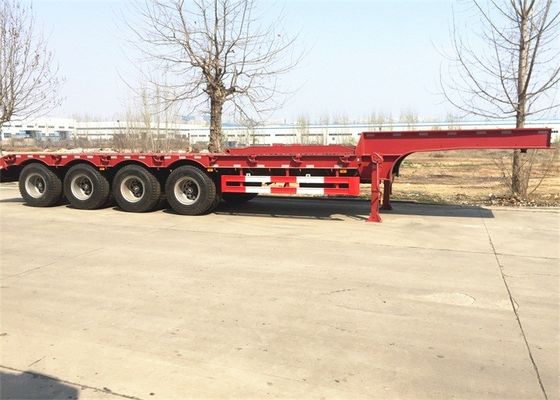

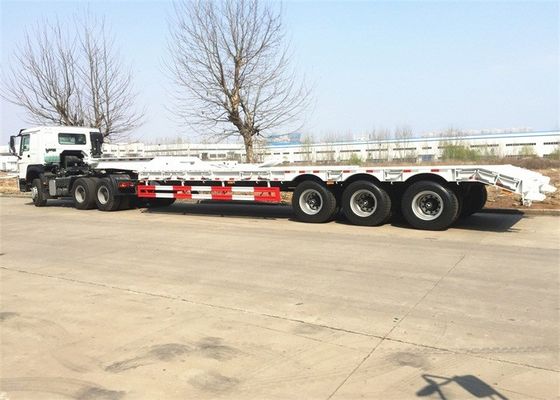

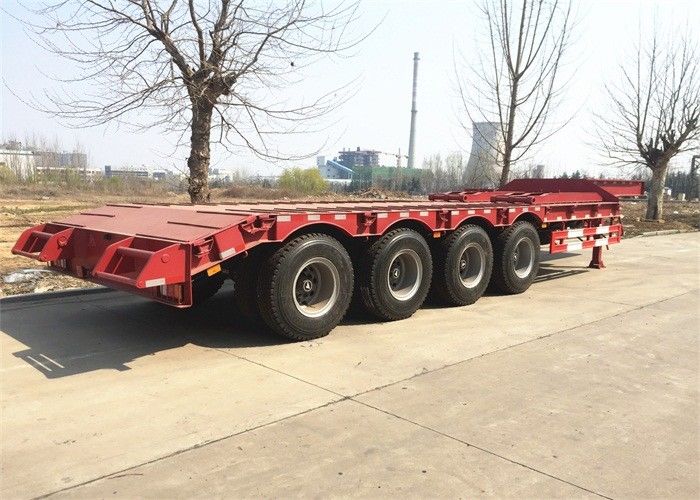

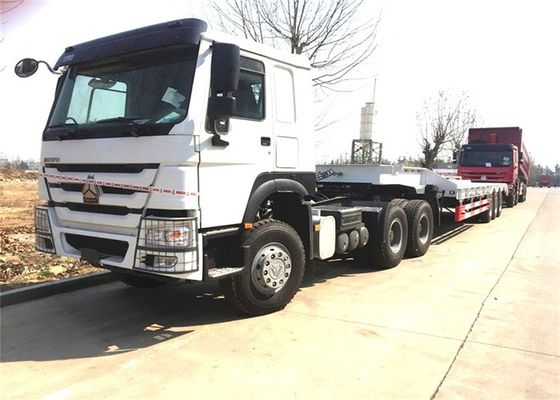

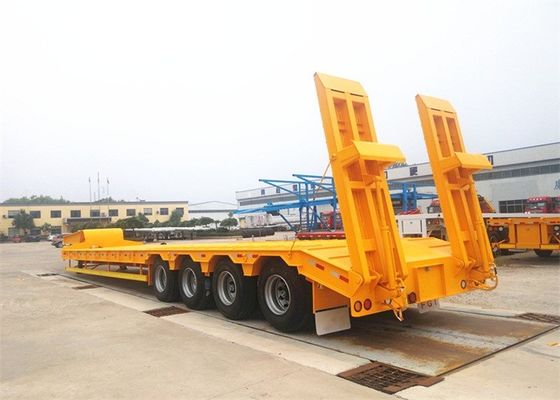

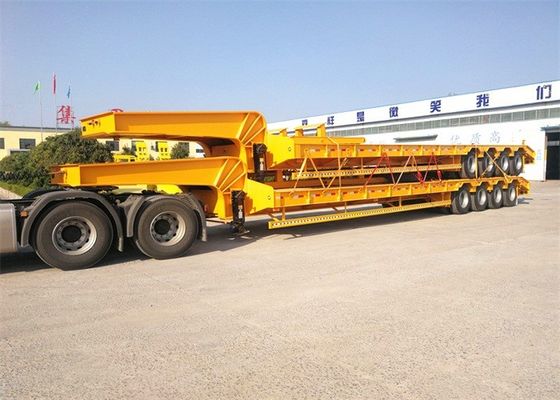

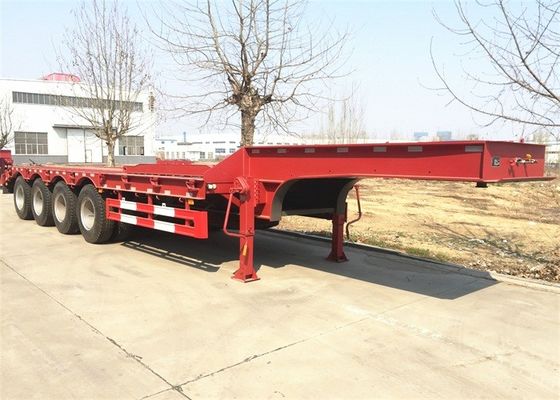

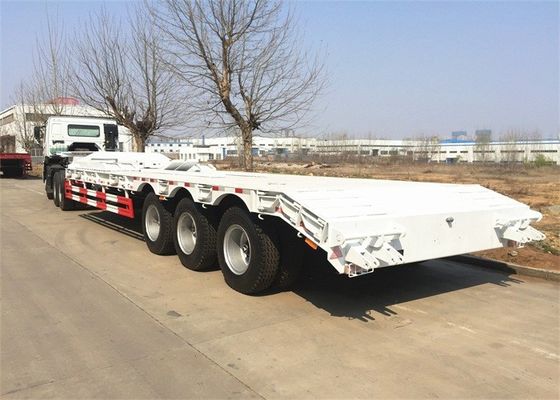

Hydraulic Extendable 3 Axle 60ton Gooseneck Low Boy Low Bed Trailer 100 Ton Lowboy Semi Trailer
3 Axles Concave Beam Lowbed 60 Tons Low Deck / Bed Trailer for sale
Weight: | ||
Tare Weight | 8000kg--14000kg | |
Loading Capacity | 30T-90T low bed semi trailer | |
Axle Weight Load | 13T-16T | |
Specification: | ||
|
Axle number | 2-4 |
Axle Brand | Fuwa/BPW/Optional | |
Suspension | Common mechanical | |
King Pin | 2" or 3.5" traction pin | |
Dimensions (LxWxH) | 13000-18000×3000×900-1200mm | |
Support legs | 28T | |
Wheel Rim | 8.5-20,9.0-20,8.25-22.5,9.0-22.5 steel wheel rim optional upon choice | |
Wheelbase | 7180/6680/6260+1310+1310mm | |
Steel Spring | 8/10/13 pieces per axle | |
Ladder | Mechanical ladder Or Air Ladder | |
Landing Gear | Manual operating, Heavy duty landing gear (Brand Optional upon chioce) | |
Floor | 3-5 Diamond plate | |
Accessories | 1 Set standard tool box | |
Light | Tail lamp with turn signal, brake light & reflector, side lamp etc. | |
Painting | 1coat of anticorrosive prime, twice coats of final paint | |
Tire: | ||
Tire spe. | 12R22.5 Vacuum tire /12.00R20 | |
Number of Tire | 8 or 12 or 16 pieces | |
Spare Tire | 2 pieces | |
Frame: | ||
Main beam | The height of the beam is 500-550mm;Upper plate:16-22mm;Down plate is 18-25mm;Middle plate is 10-16mm. | |
Side beam | 20-25 channel or H steel | |
Brake: | ||
Brake brand | Optional upon choice | |
Brake Chamber | Six big chamber( Brand Optional upon choice ) | |
Brake system | Dual Line Brake system (ABS Optional upon chioce) |
