Product Details:
|
Manufacturer: | SINOTRUK (CNHTC) | Series:: | HOWO |
---|---|---|---|
Product Name:: | Tipper | Drive Type:: | 6X4, LHD Or RHD |
Loading Capacity:: | 25-40tons | Engine: | 371hp |
GearBox: | HW19710 HW19712 | Front Axle: | HF9 |
Rear Axle: | HC16 | Color: | According Customer Request |
High Light: | ISO Dump SINOTRUK Tipper Truck,9T Axle SINOTRUK Tipper Truck,HW19712 SINOTRUK Tipper Truck |

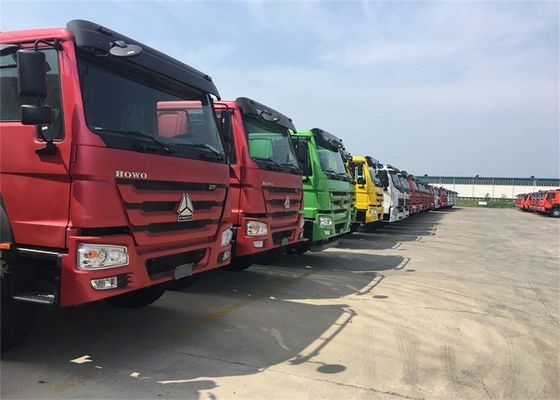

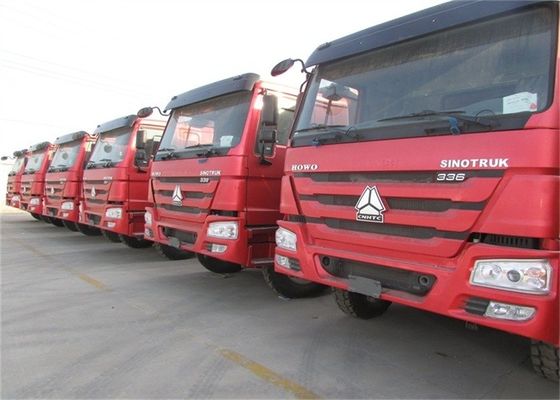

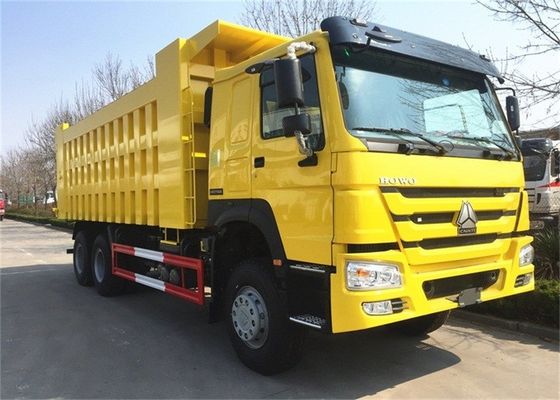

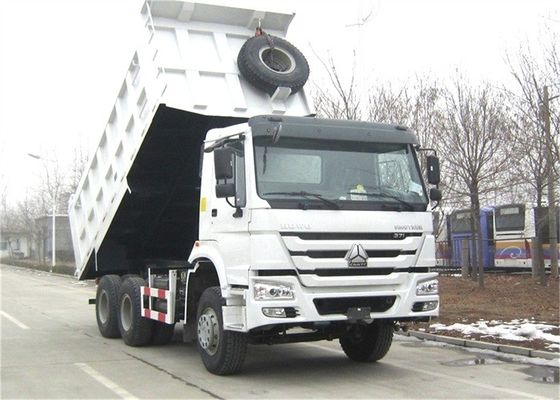

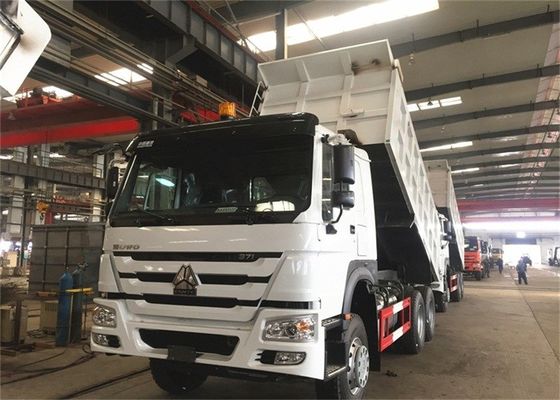

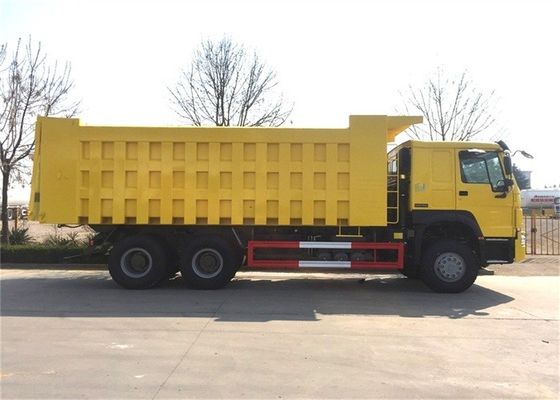

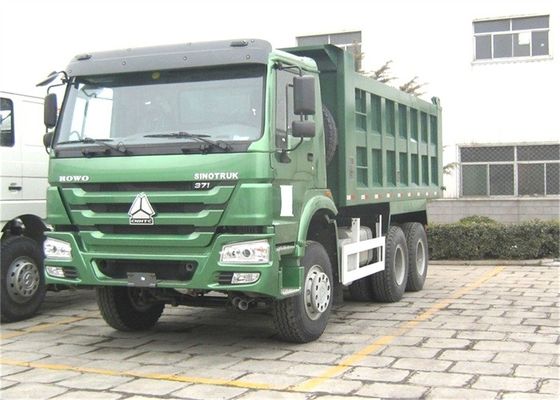

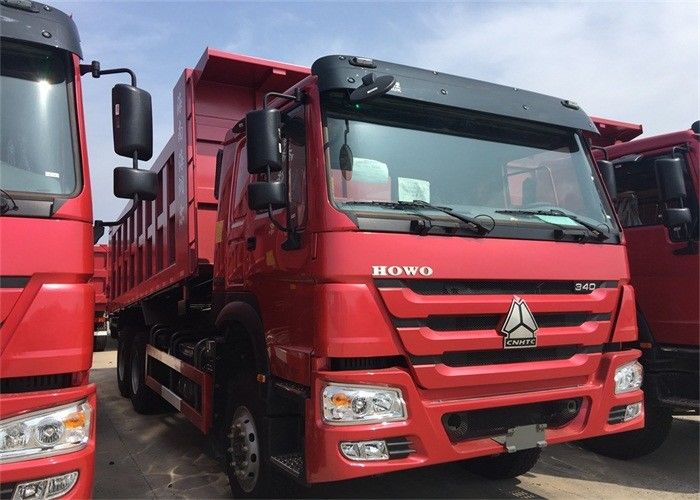

371hp howo dump truck,howo 6x4 dump truck,30 ton howo dump truck for sale
Howo dump truck basic | Made | SINOTRUK |
Series | HOWO | |
Howo dump Model | ZZ3257N3647A | |
Howo dump Driving Type | 6x4 | |
Howo dump Engine | Howo dump Engine model | WD615.47 |
Howo dump Engine Type | 6-cylinder in-line with water cooling, turbo-charging and intercooling,4-stroke direct injection diesel engine | |
Howo dump Maximum output | 371 hp (247 Kw) at 2200 rpm | |
Howo dump Displacement | 9.726 L | |
Bore | 126 mm | |
Stroke | 130 mm | |
Compression ratio | 29.8 hp/l | |
Specific fuel consumption | 195 g/kWh | |
Howo dumpTransmission | Model | HW15710(Fuller technology) |
speeds | 10 speeds | |
Howo dump Axle | Front Axle | 9T |
Rear Axle | 16T | |
Howo dump Fuel tank | Aluminium fuel tank | 300 L capacity with locking fuel cap |
Howo dump Steering | Model | ZF power steering, modol ZF8098, hydraulic steering |
Howo dump Tyre | Radial Tyre | 12.00R20 |
Howo dump Driver's Cab | Flat roof cab with bed | all steal forward control,2-arm windscreen wiper system with three speed,laminated windscreen, damped adjustable driver's seat, with heating and ventilating system, adjustable steering wheel,air conditioner |
Howo dump Dimensions mm | Wheel base | 3600+1350 |
Overall dimmensions | 8145*2496*3386 | |
Dimension of the rear dump body | 5600*2300*1500 | |
Howo dump Performance | Maximum driving speed (km/h) | 75 |
Maximum gradeability (%) | 40 | |
Minimum ground clearance (mm) | 314 | |
Minimum turning circle (m) | 20 | |
Fuel consumption (l/100 km) | 28 |
1.Does your company is a factory or trade company?
We have a factory ourself,we are on this business for few years in China. Our factory is very famous in the Shandong China.
2.Whats the qualify assurance we provided and how do we control quality?
1. Established a procedure to check products at all stages of the manufacturing process-raw materials,process materials,validated or tested materials finished goods ect. Beside,we have also developed a procedure which identifies the inspection and test status of all items at all stages of the manufacturing process.
2.100% inspection in assembly lines. All controls, inspections,equipment,fixtures,total production resources and skills are inspected to ensure they consistently achieve the required quality levels.
3. What’s your MOQ?
One unit
4. How do you transport the trucks?
We transport the vehicle by bulk or container. Our factory possess long -term cooperation with ship agency which can provide you lowest shipping fee.bulk or container.
5. Can you satisfy my special requirement?
Definitely! We are direct manufacturer and we have strong producing capacity and R&D capacity!
