Product Details:
|
| Part No.: | WG9725230042 | Application: | HOWO/A7 Dumper Truck, Tractor Truck, Cargo Truck |
|---|---|---|---|
| Brand: | SINOTRUK, HOWO, SINOTRUCK, A7, WABCO | Description: | Clutch Operation Cylinder |
| Quality: | Original | Origin: | China |

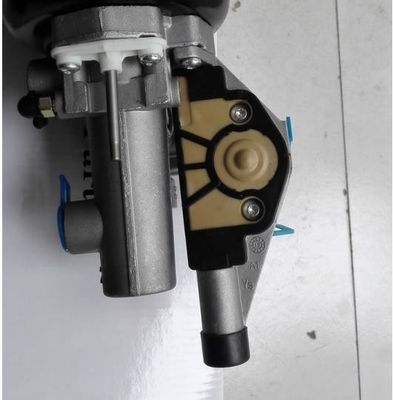

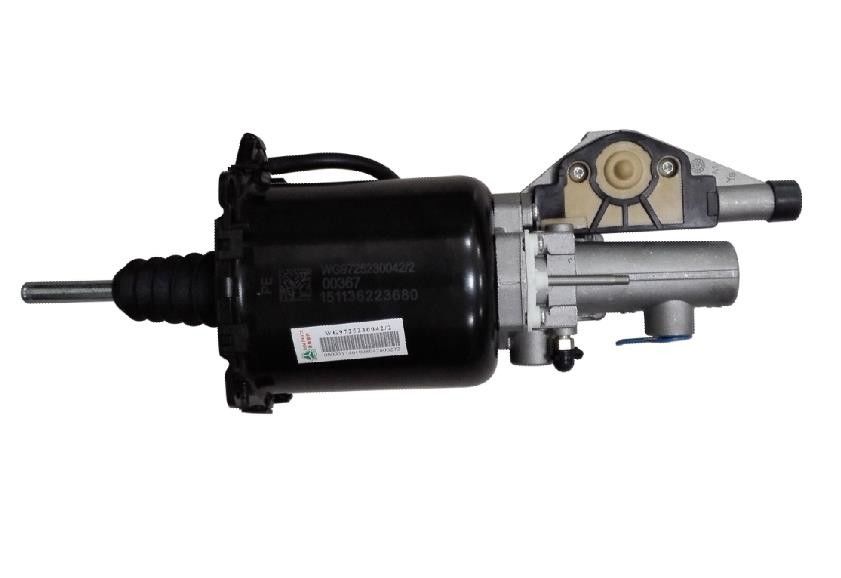

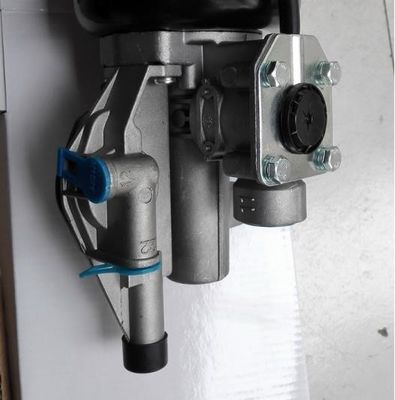

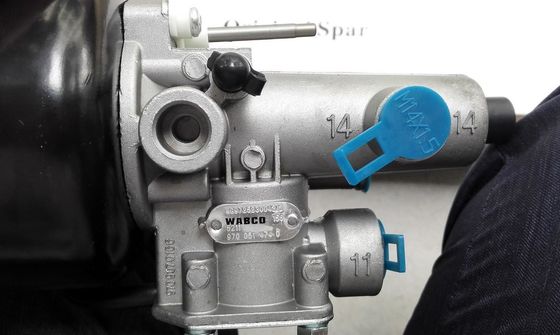

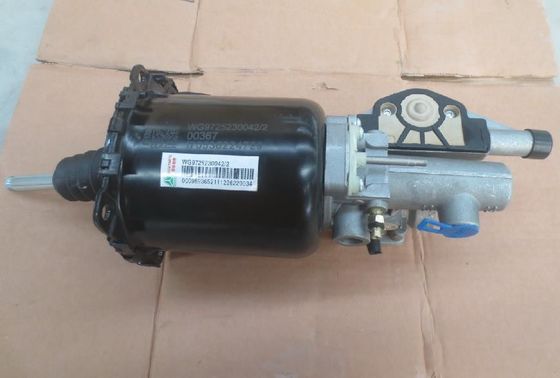

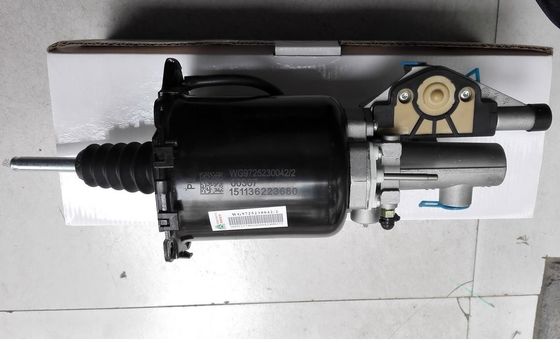

Sinotruk Spare Parts, WG9725230042, Clutch Operation Cylinder, Howo, Cnhtc, A7, STEYR
WG9725230042, Clutch Operation Cylinder, used on SINOTRUK ST16 and HC16 Rear Driving Axle, like HOWO tractor truck, tipper truck, cargo truck, etc, all can use this part.
| D NO. | Part NO. | Part Name | Quantity |
| - | AZ9719360051 | Shaft | 1 |
| - | AZ9719360050 | Combination bracket | 1 |
| 1 | AZ9719230045 | Clutch pedal | 1 |
| 2 | AZ9123230226 | Rubber footboard | 1 |
| 3 | AZ9123360067 | Plug | 1 |
| 4 | AZ9719360060 | Bush | 2 |
| 6 | Q150B0620 | Screw | 1 |
| 7 | Q40306 | Spring washer | 1 |
| 8 | Q40106 | Washer | 1 |
| 9 | Q40308 | Spring washer | 3 |
| 10 | Q340B08 | Nut | 1 |
| 11 | AZ9719230016 | Push rod | 1 |
| 12 | AZ9160230092 | Connector | 1 |
| 13 | Q72314T5F | Gasket | 3 |
| 14 | WG9719230013 | Driving cylinder | 1 |
| 15 | WG9719230014 | Clutch oil tank | 1 |
| 16 | Q40108 | Washer | 4 |
| 17 | Q150B0820 | Screw | 4 |
| 19 | Q150B0615 | screw | 1 |
| 20 | AZ9719230012 | Bracket C. | 1 |
| 21 | Q340B06 | Nut | 1 |
| 22 | AZ9719230009 | Spring | 1 |
| 23 | AZ9719230007 | Spring bracket | 1 |
| 24 | Q150B0830 | Screw | 5 |
| 25 | WG9719230027 | High pressure hose | 1 |
| 26 | WG9719230025 | Operating cylinder | 1 |
| 26/A | WG9725230042 | Operating cylinder | 1 |
| Part No. | WG9725230042 | Parts Description | Clutch Operation Cylinder |
| Application | HOWO/A7 Series Trucks | Level | Original |
| Brand | SINOTRUK, HOWO, A7, Shacman, Weichai, CNHTC, WABCO | ||
If you need more spare parts information, pls check the following:
| Clutch | 1 | WG9725160300 | CLUTCH DISC |
| 2 | AZ9725160100 | CLUTCH COVER | |
| 3 | WG9921160200 | CLUTCH DISC | |
| 4 | WG9921161100 | CLUTCH COVER | |
| 5 | WG9725160510 | CLUTCH BEARING | |
| 6 | WG9725230042 | CLUTCH OPERATING CYLINDER | |
| 7 | WG9719230023 | CLUTCH DRIVING CYLINDER |
| Cabin | 1 | WG1500139001 | A/C AIR COMPRESSOR |
| 2 | WG1642770001 | REAR VIEW MIRROR LEFT | |
| 3 | WG1642770003 | REAR VIEW MIRROR RIGHT | |
| 4 | WG1642777011 | REAR VIEW MIRROR LEFT | |
| 5 | WG1642777012 | REAR VIEW MIRROR RIGHT | |
| 6 | WG1642111011 | FRONT COVER | |
| 11 | WG1642330003 | WINDOWS LIFTER LEFT | |
| 12 | WG1642330004 | WINDOWS LIFTER RIGHT | |
| 13 | WG1642740010 | WIPER ARM AND BLADE | |
| 16 | WG1642430285 | FRONT SHOCK ABSORBER | |
| 17 | WG1642440085 | REAR AIR BAG | |
| 18 | AZ1642440021 | STABILIZER | |
| 25 | WG9719720001 | HEADLAMP ASS. -LEFT | |
| 26 | WG9719720002 | HEADLAMP ASS. -RIGHT | |
| 27 | WG9719720005 | FRONT LAMP -LEFT | |
| 28 | WG9719720006 | FRONT LAMP -RIGHT | |
| 29 | WG9719720025 | FRONT LAMP -LEFT | |
| 30 | WG9719720026 | FRONT LAMP -RIGHT | |
| 31 | WG9719810001 | REAR COMBINATION LAMP -LEFT | |
| 32 | WG9719810002 | REAR COMBINATION LAMP -RIGHT |
| Axle | 1 | AZ9231320271 | DIFF.HOUSING |
| 2 | WG9231320151 | BEVEL PINION | |
| 4 | AZ9128320014 | Ф180 FLANGE | |
| 7 | 99012340123 | REAR WHEEL BOLT AND NUT | |
| 8 | 199112340029 | PLANETARY CARRIER | |
| 11 | WG9112340113 | GASKET | |
| 12 | WG9112340114 | GASKET | |
| 13 | WG9231342006 | BRAKE GRUM | |
| 14 | AZ9231342070 | BRAKE SHOE& LINING C | |
| 15 | AZ9231342068 | REAR BRAKE LINING | |
| 16 | WG9200340068 | REAR BRAKE LINING | |
| 21 | WG9112410009 | FRONT HUB | |
| 22 | WG9100410104 | FRONT WHEEL BOLT AND NUT | |
| 26 | AZ9112440001 | BRAKE DRUM | |
| 27 | AZ9100440018 | BRAKE SHOE | |
| 28 | WG9100440029 | "T" BRAKE LINING 54°50‘ | |
| 29 | WG9100440027 | "T" BRAKE LINING 39°50’ | |
| 30 | WG9231340068 | RIVET |
by 20'GP/40'GP/40'HQ/LCL/Bulk
| 199012320503 |
