Product Details:
|
| Part No.: | WG9100440029 | Application: | HF7, HF9 Front Axle |
|---|---|---|---|
| Brand: | SINOTRUK, HOWO, SINOTRUCK, CNHTC | Description: | Front Brake Lining |
| Quality: | Original | Origin: | China |
| High Light: | WG9100440029,SINOTRUK Front Brake Lining,HF9 Front Brake Lining |
||

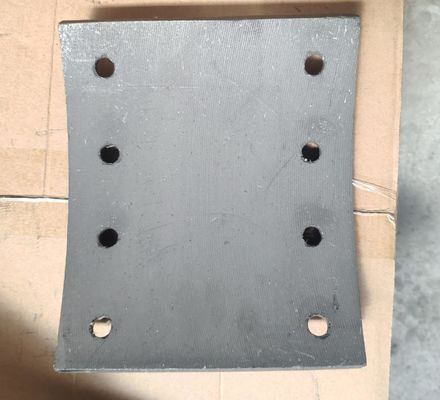

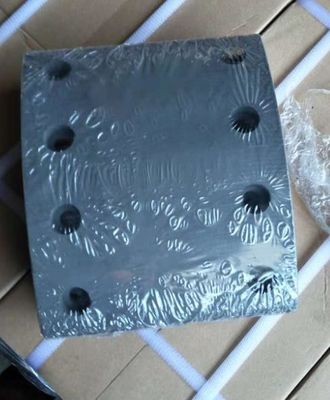

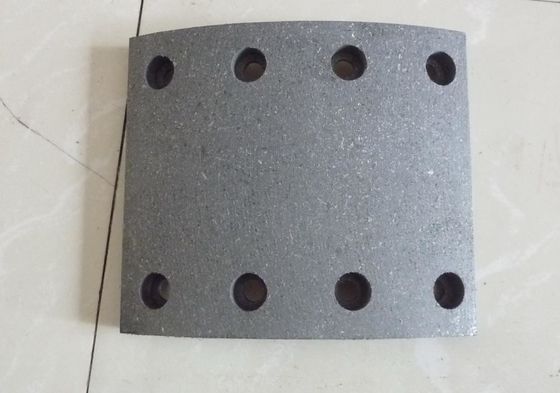

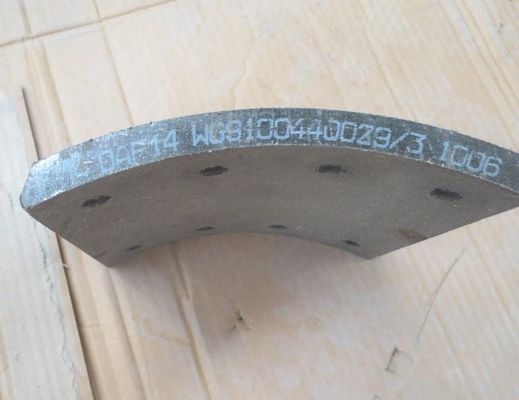

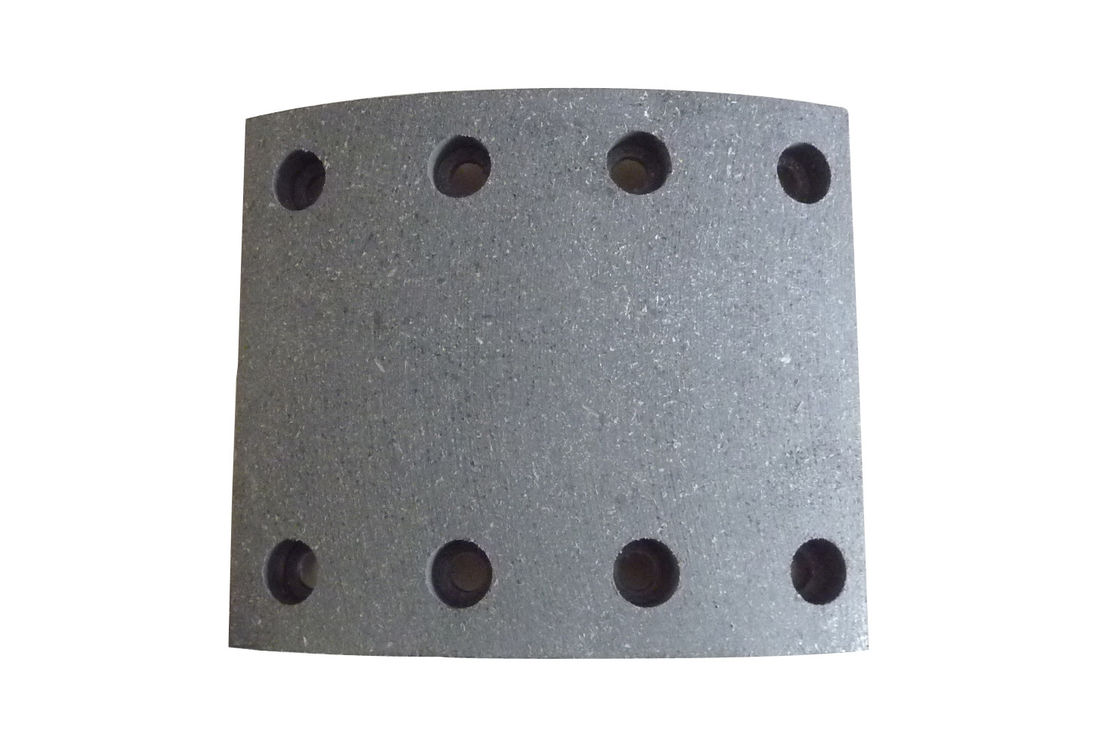

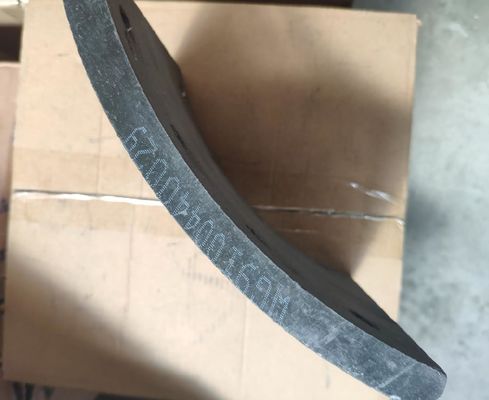

WG9100440029 Front Brake Lining, used on SINOTRUK HF7, HF9 series front axles, like HOWO tractor truck, tipper truck, cargo truck, etc, all can use this part.
| D NO. | Part NO. | Part Name | Quantity | ||||
| 1 | WG9112440001 | Brake drum | 2 | ||||
| 2 | Q2541025 | Bolt | 4 | ||||
| 3 | 1880 440007 | Dust shield | 2 | ||||
| 4 | Q150B0816 | Screw | 8 | ||||
| 5 | Q40308 | Shim | 8 | ||||
| 6 | 199000440031 | Brake shoe C | 4 | ||||
| 6/A | WG9100440030 | Brake shoe C(Incl.6-1,7,7A,8) | 4 | ||||
| 6-1 | AZ9100440018 | Brake shoe | 4 | ||||
| 7 | WG9100440029 | "T" brake lining | 4 | ||||
| 7A | WG9100440027 | "T" brake lining | 4 | ||||
| 8 | 189000340068 | Rivet | 56 | ||||
| 9 | WG880 440006 | Bushing | 4 | ||||
| 10 | WG880 440008 | Washer | 2 | ||||
| 11 | Q381B24 | Castle nut | 4 | ||||
| 12 | Q5005045 | Cotter pin | 4 | ||||
| 13 | 2258W803 | Return spring | 2 | ||||
| 13/A | AZ9100440061 | Return spring | 2 | ||||
| 14 | WG1218G85 | Return spring pin | 4 | ||||
| 15 | 199112440018 | Bushing | 4 | ||||
| 19 | WG9100440001 | Camshaft(left) | 1 | ||||
| 20 | WG9100440002 | Camshaft(right) | 1 |
| Part No. | WG9100440029 | Parts Description | Front Brake Lining |
| Application | HF7, HF9 Front Axle | Level | Original |
| Brand | SINOTRUK, HOWO, A7, Shacman, Weichai, CNHTC, SINOTRUCK, STEYR | ||
If you need more spare parts information, pls check the following:
| Axle | 1 | AZ9231320271 | DIFF.HOUSING |
| 2 | WG9231320151 | BEVEL PINION | |
| 4 | AZ9128320014 | Ф180 FLANGE | |
| 7 | 99012340123 | REAR WHEEL BOLT AND NUT | |
| 8 | 199112340029 | PLANETARY CARRIER | |
| 11 | WG9112340113 | GASKET | |
| 12 | WG9112340114 | GASKET | |
| 13 | WG9231342006 | BRAKE GRUM | |
| 14 | AZ9231342070 | BRAKE SHOE& LINING C | |
| 15 | AZ9231342068 | REAR BRAKE LINING | |
| 16 | WG9200340068 | REAR BRAKE LINING | |
| 21 | WG9112410009 | FRONT HUB | |
| 22 | WG9100410104 | FRONT WHEEL BOLT AND NUT | |
| 26 | AZ9112440001 | BRAKE DRUM | |
| 27 | AZ9100440018 | BRAKE SHOE | |
| 28 | WG9100440029 | "T" BRAKE LINING 54°50‘ | |
| 29 | WG9100440027 | "T" BRAKE LINING 39°50’ | |
| 30 | WG9231340068 | RIVET |
| Engine | 1 | VG1500010344 | CYLINDER LINER |
| 2 | VG1500010046 | MAIN BEARING STD | |
| 5 | VG1560020029 | CRANKSHAFT ASSY | |
| 6 | VG1560037011 | PISTON | |
| 7 | VG1560030013 | PISTON PIN | |
| 8 | VG1560030040 | PISTON RING | |
| 9 | 161500030009 | CON ROD ASSEMBLY | |
| 10 | 61560030033/34 | CONROD BEARING | |
| 11 | VG1560040058 | CYLINDER HEAD | |
| 12 | VG1500040049 | CYLINDER HEAD GASKET | |
| 13 | VG1500050096 | CAMSHAFT |
